• RJ45 Modular Jack Connector without Transformer Tab Down - TWE222XCNL - Main View
  • RJ45 Modular Jack Connector without Transformer Tab Down - TWE222XCNL - Second View

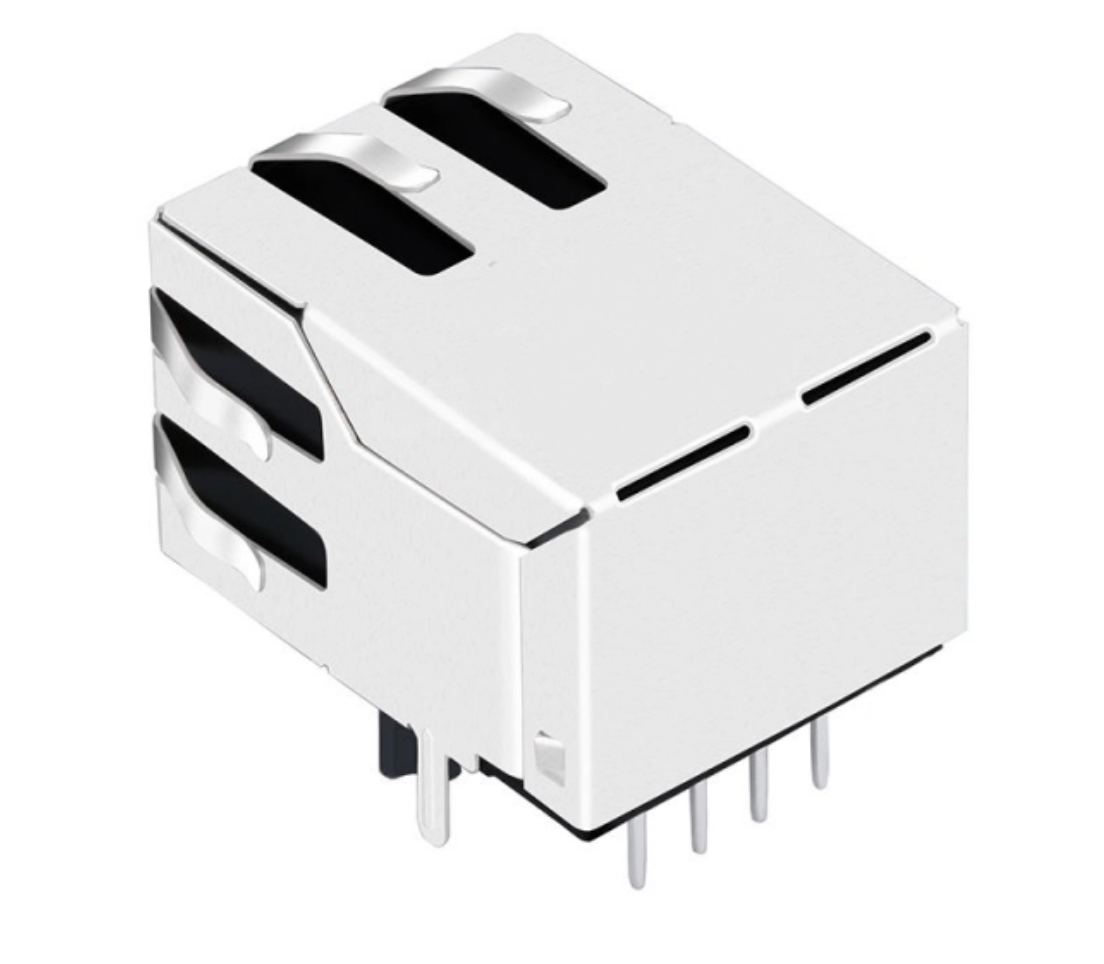

  • RJ45 Modular Jack Connector without Transformer Tab Down - TWE222XCNL - Third View
1 3

TWE2221CNL, Penyambung RJ45 tanpa Tab Transformer Ke Bawah tanpa Led

  • Serasi dengan
    TE/ Tyco: 54062961-1
  • Mematuhi pelbagai standard industri, memastikan penggunaan yang boleh dipercayai dan cekap
  • Sempurna untuk Intercom, Komputer Perindustrian, penghala dan Suis
  • Harga bermula dari $0.10 hingga $3.00 USD bergantung pada kuantiti pesanan dan spesifikasi dan diskaun pukal tersedia untuk pesanan volume besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Latch Type Down
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.837/ 21.27
Product Width (Inches/mm) 0.625/ 15.88
Product Height (Inches/mm) 0.537/ 13.65
Temperature 0℃ ~ 70℃
Compatible Brands TE/ Tyco

Related jacks

Same family, different latch, LED or plating option.

Alternatif Kos Berkesan untuk Jenama Besar RJ45 Jack

Menghadapi masa utama yang panjang atau kos tinggi daripada jenama penyambung utama? Kami menyediakan pengganti berkualiti tinggi yang boleh terus dipasang untuk bicu modular standard daripada TE, Molex, Amphenol, dan Wurth. Penyambung kami sepadan dengan jejak piawaian industri dan spesifikasi prestasi pada titik harga yang lebih kompetitif.

Daripada penyaduran emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Kongsi lukisan untuk mendapatkan padanan setara
Masa utama yang singkat dan pembuatan yang konsisten di Taiwan
100% diuji untuk rintangan sentuhan dan integriti penebat
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the TE Connectivity 5406296-1?
The TWE2221CNL from TeleWire Technology cross-references to the TE Connectivity 5406296-1 and to LINK-PP LPJEF1110CNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TWE2221CNL replace?
The TWE2221CNL cross-references to TE Connectivity 5406296-1; TE Connectivity 54062961-1, and to LINK-PP LPJEF1110CNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TWE2221CNL as a second source?
Request a sample of the TWE2221CNL and the mechanical drawing from TeleWire Technology, then check the footprint against the TE Connectivity 5406296-1 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
