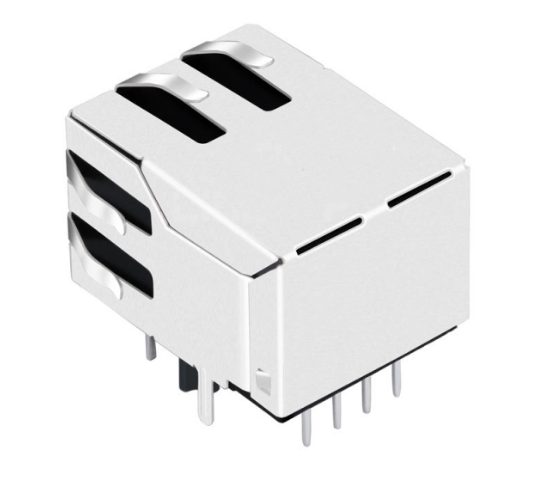

  • RJ45 Modular Jack Connector with Transformer Tab Down - TWE271GDNL - Third View
1 3

TWE271GDNL, RJ45 dengan Tab Transformer Bawah Kuning/ Hijau Led

  • Peranti berprestasi tinggi menyokong kelajuan 10/100 Base-T
  • Mematuhi pelbagai standard industri, memastikan penggunaan yang boleh dipercayai dan cekap
  • Sempurna untuk Intercom, PC Industri, Penghala, dan Suis

Maklumat Pembungkusan Produk

Pakej Tray (Pilihan pembungkusan gelendong tersedia)
Saiz karton 32*30*31cm
Kuantiti/karton 1200pcs
Berat Kasar/karton 8.5kg

Lukisan Produk

[bahagian] lukisan mekanikalDimensions, footprint and pin-out
View full details

Spesifikasi Produk

Jenis RJ 8P8C(RJ45)
Port 1x1
Jenis Selak Down
LED Yellow/ Green
Perisai Shield with EMI Finger
Jenis Pemasangan PCB Through Hole
Orientasi Right Angle (90°)
AutoMDIX Yes
Bahan PCB FR4
Bahan Sentuhan Emas
Saduran Sentuhan Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Pensijilan Mematuhi RoHS
Panjang Produk (Inci/mm) 0.837/ 21.27
Lebar Produk (Inci/mm) 0.625/ 15.88
Tinggi Produk (Inci/mm) 0.537/ 13.65
Suhu -40℃ ~ 85℃

Jek berkaitan

Keluarga yang sama, selak, LED atau pilihan saduran yang berbeza.

Alternatif Kos Efektif untuk Jek RJ45 Jenama Utama

Menghadapi masa menunggu yang lama atau kos yang tinggi daripada jenama penyambung utama? Kami menyediakan pengganti berkualiti tinggi yang sedia digunakan untuk jek modular standard daripada TE, Molex, Amphenol, Wurth, Halo, Bel Fuse, dan Pulse. Penyambung kami menepati jejak standard industri dan spesifikasi prestasi pada titik harga yang lebih kompetitif.

Daripada saduran emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Kongsi lukisan untuk mendapatkan padanan setara
Masa menunggu yang singkat dan pengeluaran yang konsisten di Taiwan
100% diuji untuk rintangan sentuhan dan integriti penebat
Minta Sebut Harga Tersuai

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJE160GDNL?
Yes. The TWE271GDNL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJE160GDNL. LINK-PP manufactures in mainland China; the TWE271GDNL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TWE271GDNL be built to a different configuration?
Yes. The standard TWE271GDNL ships with Yellow/ Green LEDs and a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWE271GDNL as a second source?
Request a sample of the TWE271GDNL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJE160GDNL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
