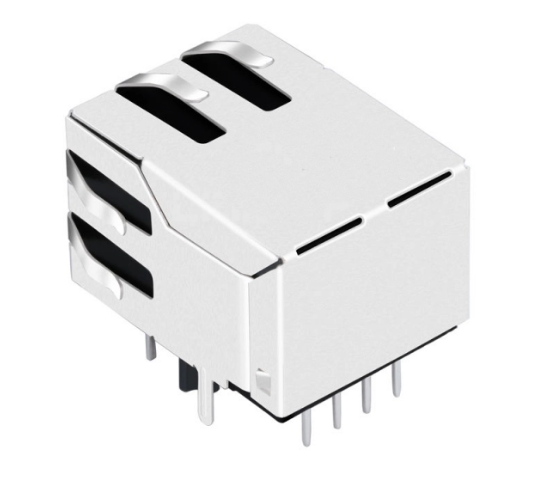

  • RJ45 Modular Jack Connector with Transformer Tab Down - TWE271GFNL - Third View
1 3

TWE271GFNL, Ethernet RJ45 tanpa Tab Transformer Turun dengan Led Hijau/Hijau

  • Serasi dengan
    Halo: HJF11-2450E-L11
  • Mematuhi pelbagai standard industri, memastikan penggunaan yang boleh dipercayai dan cekap
  • Sempurna untuk Intercom, Komputer Perindustrian, Router, dan Suis
  • Harga bermula dari $0.10 hingga $3.00 USD bergantung pada kuantiti pesanan dan spesifikasi, dan diskaun pukal tersedia untuk pesanan volume besar

Maklumat Pembungkusan Produk

Pakej Tray (Pilihan pembungkusan gelendong tersedia)
Saiz karton 32*30*31cm
Kuantiti/karton 1200pcs
Berat Kasar/karton 8.5kg

Lukisan Produk

[bahagian] lukisan mekanikalDimensions, footprint and pin-out
View full details

Spesifikasi Produk

Jenis RJ 8P8C(RJ45)
Port 1x1
Jenis Selak Down
LED Green/ Green
Perisai Shield with EMI Finger
Jenis Pemasangan PCB Through Hole
Orientasi Right Angle (90°)
AutoMDIX Yes
Bahan PCB FR4
Bahan Sentuhan Emas
Saduran Sentuhan Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Pensijilan Mematuhi RoHS
Panjang Produk (Inci/mm) 0.837/ 21.27
Lebar Produk (Inci/mm) 0.625/ 15.88
Tinggi Produk (Inci/mm) 0.537/ 13.65
Suhu -40℃ ~ 85℃
Jenama Serasi Halo

Jek berkaitan

Keluarga yang sama, selak, LED atau pilihan saduran yang berbeza.

Alternatif Kos Efektif untuk Jek RJ45 Jenama Utama

Menghadapi masa menunggu yang lama atau kos yang tinggi daripada jenama penyambung utama? Kami menyediakan pengganti berkualiti tinggi yang sedia digunakan untuk jek modular standard daripada TE, Molex, Amphenol, Wurth, Halo, Bel Fuse, dan Pulse. Penyambung kami menepati jejak standard industri dan spesifikasi prestasi pada titik harga yang lebih kompetitif.

Daripada saduran emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Kongsi lukisan untuk mendapatkan padanan setara
Masa menunggu yang singkat dan pengeluaran yang konsisten di Taiwan
100% diuji untuk rintangan sentuhan dan integriti penebat
Minta Sebut Harga Tersuai

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Halo HFJ11-2450E-L11?
The TWE271GFNL from TeleWire Technology cross-references to the Halo HFJ11-2450E-L11 and to LINK-PP LPJE160GFNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TWE271GFNL replace?
The TWE271GFNL cross-references to Halo HFJ11-2450E-L11; Halo HJF11-2450E-L11, and to LINK-PP LPJE160GFNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TWE271GFNL as a second source?
Request a sample of the TWE271GFNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Halo HFJ11-2450E-L11 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
