• 1x2 RJ45 Modular Jack Connector Tab Up without Transformer - TWE312AGNL - Main View
  • 1x2 RJ45 Modular Jack Connector Tab Up without Transformer - TWE312AGNL - Second View

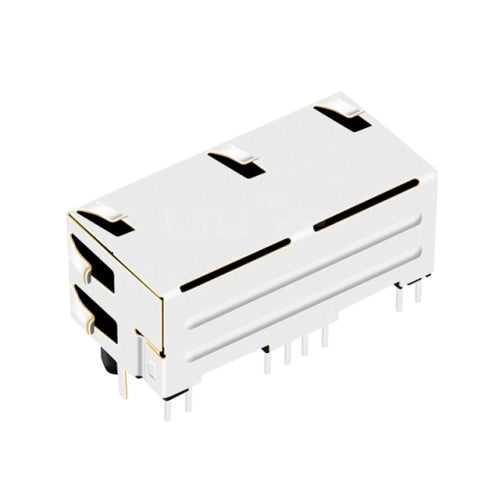

  • 1x2 RJ45 Modular Jack Connector without Transformer Tab Up - TWE3121AHML - Third View
1 3

TWE312AGNL, 1x2 Porta RJ45 Tab Up sem Transformador com LED Amarelo/Verde

  • Compatível com
    TE/ Tyco: 6116353-1
  • Compatível com vários padrões da indústria, garantindo uso confiável e eficiente
  • Perfeito para Sistema de Entrada, PC Industrial, Roteador e Switch
  • Os preços variam de R$0,50 a R$15,00 dependendo da quantidade do pedido e especificações, e descontos em volume estão disponíveis para pedidos de grande volume

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Ver informações completas

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x2
Latch Type Up
LED Yellow/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.620/ 15.75
Product Width (Inches/mm) 1.270/ 32.25
Product Height (Inches/mm) 0.516/ 13.10
Temperature -40℃ ~ 85℃
Compatible Brands TE/ Tyco

Related jacks

Same family, different latch, LED or plating option.

Alternativas Custo-Efetivas para Conectores RJ45 de Grandes Marcas

Enfrentando longos prazos de entrega ou altos custos de grandes marcas de conectores? Oferecemos substitutos de alta qualidade e compatíveis para conectores modulares padrão da TE, Molex, Amphenol e Wurth. Nossos conectores correspondem aos footprints e especificações de desempenho padrão da indústria a um preço mais competitivo.

De Flash, 3µ", 6µ", 15µ", 30µ", a 50µ" de banho de ouro
Compartilhe o desenho para obter uma correspondência equivalente
Prazos de entrega curtos e fabricação consistente em Taiwan
100% testado quanto à resistência de contato e integridade de isolamento
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the TE Connectivity 6116353-1?
The TWE312AGNL from TeleWire Technology cross-references to the TE Connectivity 6116353-1 and to LINK-PP LPJE201AGNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TWE312AGNL be built to a different configuration?
Yes. The standard TWE312AGNL ships with Yellow/ Green LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches TE Connectivity 6116353-1.
How do I qualify the TWE312AGNL as a second source?
Request a sample of the TWE312AGNL and the mechanical drawing from TeleWire Technology, then check the footprint against the TE Connectivity 6116353-1 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
