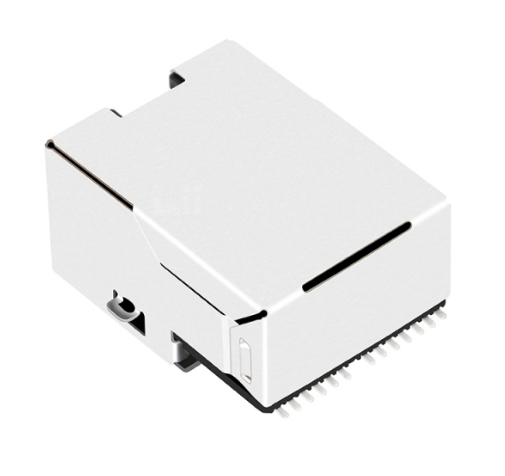

• TW20773AGNL, 100 Base SMT Ethernet RJ45 with Transformer Tab Up with Yellow/ Green Led - TeleWire Technology
  • TW20773AGNL, 100 Base SMT Ethernet RJ45 with Transformer Tab Up with Yellow/ Green Led - TeleWire Technology
  • TW20773AGNL, 100 Base SMT Ethernet RJ45 with Transformer Tab Up with Yellow/ Green Led - TeleWire Technology
1 3

TW20773AGNL, 100 Base SMT Ethernet RJ45 met Transformator Tab Omhoog met Gele/Groene Led

  • Compatibel met
    WE: 7498111120
  • Hoogwaardige apparaat ondersteunt snelheden van 10/100 Base-T
  • Voldoet aan meerdere industriestandaarden, wat betrouwbaar en efficiënt gebruik garandeert
  • De prijzen variëren van $0,50 tot $3,00 USD, afhankelijk van de bestelhoeveelheid en specificaties, en er zijn groothandelskortingen beschikbaar voor grote bestellingen

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Alle details bekijken

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Up
LED Yellow/ Green
Shielding Shield with EMI Finger
PCB Mount Type Surface Mount
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.850/ 21.60
Product Width (Inches/mm) 0.614/ 15.60
Product Height (Inches/mm) 0.447/ 11.35
Temperature 0℃ ~ 70℃
Compatible Brands WE

Related jacks

Same family, different latch, LED or plating option.

Kosteneffectieve alternatieven voor grote merken RJ45-jacks

Geconfronteerd met lange levertijden of hoge kosten van grote connectormerken? Wij bieden hoogwaardige, directe vervangingen voor standaard modulaire jacks van TE, Molex, Amphenol en Wurth. Onze connectoren komen overeen met industriestandaard footprints en prestatiespecificaties tegen een meer concurrerende prijs.

Van Flash, 3µ", 6µ", 15µ", 30µ", tot 50µ" vergulding
Deel de tekening voor een equivalente match
Korte levertijden en consistente productie in Taiwan
100% getest op contactweerstand en isolatie-integriteit
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Würth Elektronik 7498111120?
The TW20773AGNL from TeleWire Technology cross-references to the Würth Elektronik 7498111120 and to LINK-PP LPJG19662AGNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW20773AGNL be built to a different configuration?
Yes. The standard TW20773AGNL ships with Yellow/ Green LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Würth Elektronik 7498111120.
How do I qualify the TW20773AGNL as a second source?
Request a sample of the TW20773AGNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Würth Elektronik 7498111120 on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
