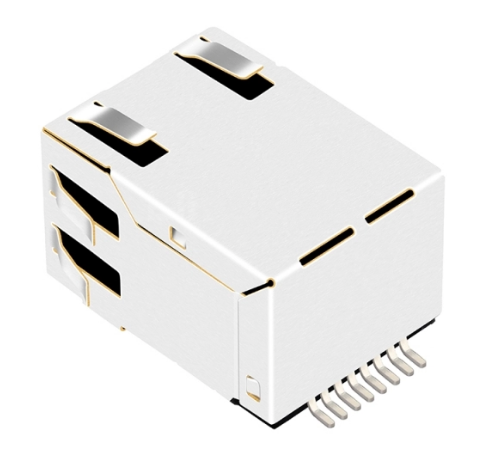

TW20224CNL, 10/100 Base SMT RJ45 met Transformator Tab Naar Beneden zonder Led

  • Compatibel met
    Pulse: J0C-0004NLT, J0C-0004NL, J00004NLT
  • Hoogwaardige apparaat ondersteunt snelheden van 10/100 Base-T
  • Voldoet aan meerdere industriestandaarden, wat betrouwbaar en efficiënt gebruik garandeert
  • De prijzen variëren van $0,50 tot $3,00 USD, afhankelijk van de bestelhoeveelheid en specificaties, en er zijn groothandelskorting beschikbaar voor grote bestellingen

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Alle details bekijken

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Down
Shielding Shield with EMI Finger
PCB Mount Type Surface Mount
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.864/ 21.95
Product Width (Inches/mm) 0.640/ 16.26
Product Height (Inches/mm) 0.535/ 13.60
Temperature 0℃ ~ 70℃
Compatible Brands Pulse

Related jacks

Same family, different latch, LED or plating option.

Kosteneffectieve alternatieven voor grote merken RJ45-jacks

Geconfronteerd met lange levertijden of hoge kosten van grote connectormerken? Wij bieden hoogwaardige, directe vervangingen voor standaard modulaire jacks van TE, Molex, Amphenol en Wurth. Onze connectoren komen overeen met industriestandaard footprints en prestatiespecificaties tegen een meer concurrerende prijs.

Van Flash, 3µ", 6µ", 15µ", 30µ", tot 50µ" vergulding
Deel de tekening voor een equivalente match
Korte levertijden en consistente productie in Taiwan
100% getest op contactweerstand en isolatie-integriteit
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Pulse J00004NLT?
The TW20224CNL from TeleWire Technology cross-references to the Pulse J00004NLT and to LINK-PP LPJ19113CNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TW20224CNL replace?
The TW20224CNL cross-references to Pulse J00004NLT; Pulse J0C-0004NL; Pulse J0C-0004NLT, and to LINK-PP LPJ19113CNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TW20224CNL as a second source?
Request a sample of the TW20224CNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Pulse J00004NLT on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
