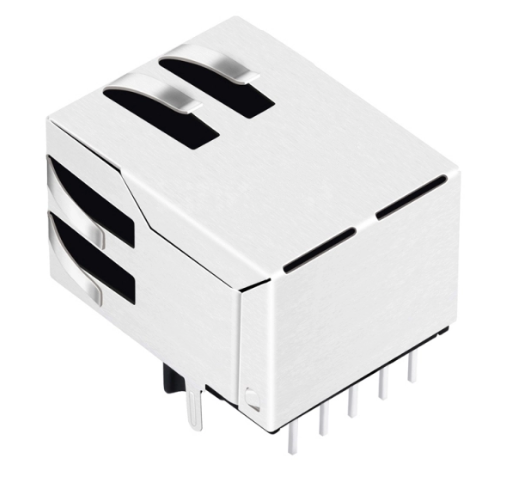

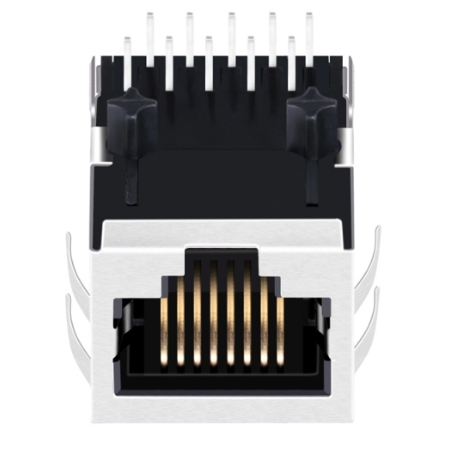

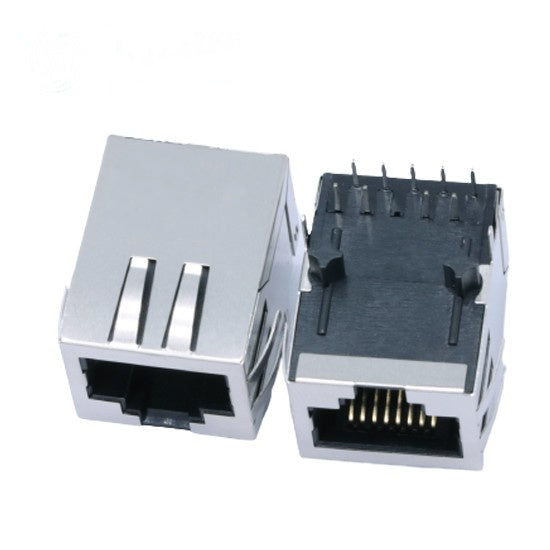

TW19879CNL, 1000 Base Gigabit Magnetics RJ45 Tab Down zonder Led

  • Compatibel met
    Belfuse: SI-6007-LF, SI-6107-LF
  • Hoogwaardige apparaat ondersteunt snelheden van 1000 Base-T
  • Voldoet aan meerdere industriestandaarden, wat zorgt voor betrouwbaar en efficiënt gebruik
  • De prijzen variëren van $0,50 tot $3,00 USD, afhankelijk van de bestelhoeveelheid en specificaties, en er zijn groothandelskorting beschikbaar voor grote bestellingen

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Alle details bekijken

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x1
Speed 10/100/1000 Base-T
Latch Type Down
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.837/ 21.25
Product Width (Inches/mm) 0.627/ 15.93
Product Height (Inches/mm) 0.524/ 13.30
Temperature 0℃ ~ 70℃
Compatible Brands Belfuse

Related jacks

Same family, different latch, LED or plating option.

Kosteneffectieve alternatieven voor grote merken RJ45-jacks

Geconfronteerd met lange levertijden of hoge kosten van grote connectormerken? Wij bieden hoogwaardige, directe vervangingen voor standaard modulaire jacks van TE, Molex, Amphenol en Wurth. Onze connectoren komen overeen met industriestandaard footprints en prestatiespecificaties tegen een meer concurrerende prijs.

Van Flash, 3µ", 6µ", 15µ", 30µ", tot 50µ" vergulding
Deel de tekening voor een equivalente match
Korte levertijden en consistente productie in Taiwan
100% getest op contactweerstand en isolatie-integriteit
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Bel Fuse SI-6007-LF?
The TW19879CNL from TeleWire Technology cross-references to the Bel Fuse SI-6007-LF and to LINK-PP LPJG0868CNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TW19879CNL replace?
The TW19879CNL cross-references to Bel Fuse SI-6007-LF; Bel Fuse SI-61007-F; Bel Fuse SI-6107-LF, and to LINK-PP LPJG0868CNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TW19879CNL as a second source?
Request a sample of the TW19879CNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Bel Fuse SI-6007-LF on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
