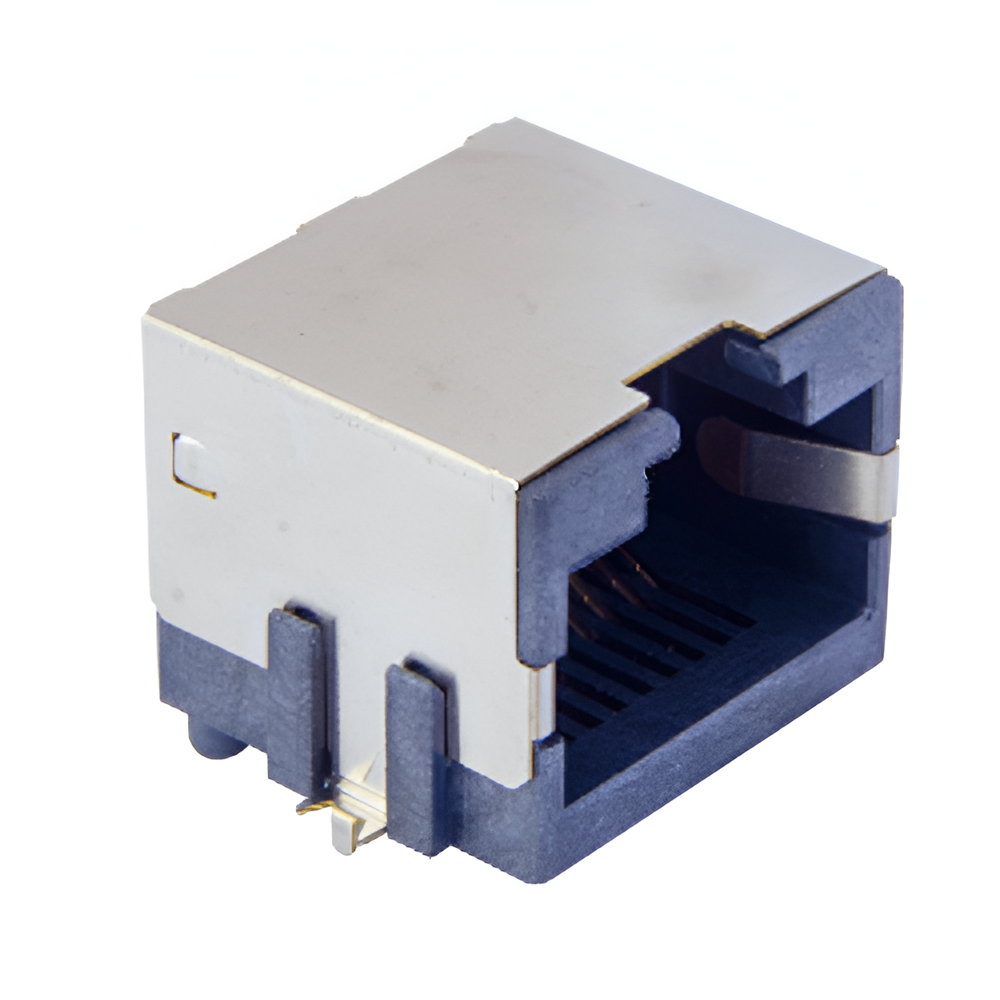

• RJ45 jack connector without transformer Tab up - No LEDs - Main View
1 1

TWE08689925KLFG, RJ45 sin Pestaña de Transformador Hacia Arriba sin Led

  • Cumple con múltiples estándares de la industria, asegurando un uso confiable y eficiente
  • Perfecto para Intercom, Industrial PC, Router y Switch
  • El precio varía de $0.10 a $2.00 USD según la cantidad y las especificaciones. Contáctenos para obtener información detallada sobre precios y descuentos por volumen.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Ver todos los detalles

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Latch Type Up
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.539/ 13.70
Product Width (Inches/mm) 0.583/ 14.80
Product Height (Inches/mm) 0.390/ 9.90
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Alternativas Rentables a las Principales Marcas de Jacks RJ45

¿Se enfrenta a largos plazos de entrega o altos costos de las principales marcas de conectores? Ofrecemos reemplazos de alta calidad y directos para jacks modulares estándar de TE, Molex, Amphenol y Wurth. Nuestros conectores coinciden con las huellas estándar de la industria y las especificaciones de rendimiento a un precio más competitivo.

Desde Flash, 3µ", 6µ", 15µ", 30µ", hasta 50µ" de baño de oro
Comparta el dibujo para obtener una coincidencia equivalente
Cortos plazos de entrega y fabricación constante en Taiwán
100% probado para resistencia de contacto e integridad de aislamiento
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Who manufactures the TWE08689925KLFG?
The TWE08689925KLFG is an original design manufactured by TeleWire Technology in Taiwan. Send the footprint or mechanical drawing you are designing against and the TeleWire Technology engineering team will confirm compatibility.
Can the TWE08689925KLFG be built to a different configuration?
Yes. The standard TWE08689925KLFG ships with a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWE08689925KLFG as a second source?
Request a sample of the TWE08689925KLFG and the mechanical drawing from TeleWire Technology, then check the footprint against your current part on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
