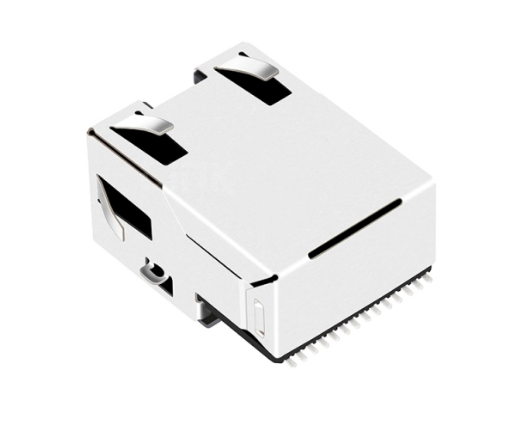

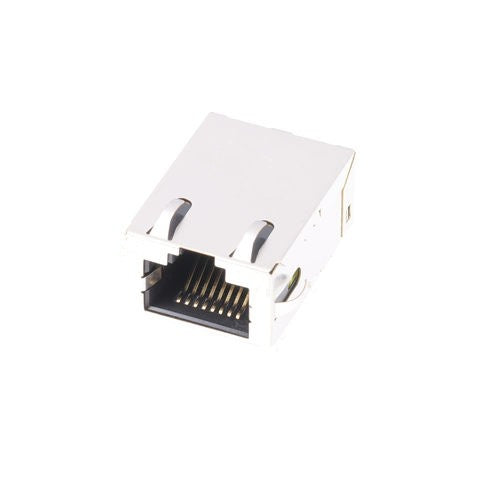

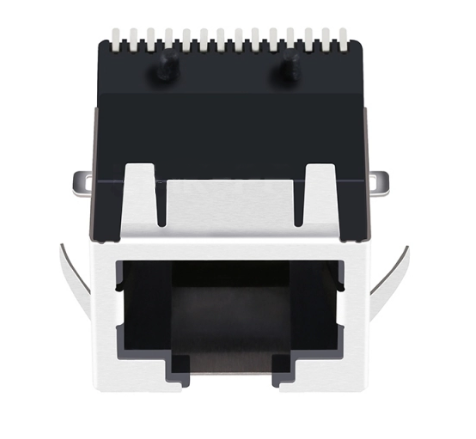

TWL20071CNL 10/100 Base-T RJ45 MagJack Profil Rendah, Tab ke Atas, Tanpa LED

TeleWire Technology TWL20071CNL ialah RJ45 MagJack berperisai EMI-finger 10/100 Base-T dengan magnet bersepadu. Dibuat di Taiwan.

Rujukan Silang

  • LINK-PP LPJ19960CNL — tapak yang sama, diperoleh dari luar tanah besar China.

Nota Pemilihan

  • PoE, IEEE 802.3af — sehingga 15.4 W pada PSE melalui pasangan data.
  • Badan profil rendah — ketinggian dikurangkan di mana kelegaan papan-ke-penutup menjadi kekangan.
  • 10/100 Base-T — magnet yang dipadankan untuk kadar talian ini, tiada transformer luaran.
  • −40 °C hingga +85 °C — julat yang diperlukan untuk perumah luar dan lantai kilang.

Aplikasi tipikal: titik akhir berkuasa di mana sambungan membawa kedua-dua pautan dan bekalan peranti.

Harga untuk TWL20071CNL berjulat dari $0.50 hingga $3.00 USD bergantung pada kuantiti pesanan dan konfigurasi, dengan peringkat volum tersedia atas permintaan.

Sahkan TWL20071CNL pada papan anda terlebih dahulu. Sampel tersedia untuk pengesahan reka bentuk, dan lukisan mekanikal memberikan tapak sebelum anda melakukan susun atur. Minta sampel atau sebut harga.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 12P8C(RJ45)
Ports 1x1
Speed 10/ 100 Base-T
Latch Type Up
Shielding Shield with EMI Finger
PCB Mount Type Surface Mount
Orientation Right Angle (90°)
PoE PoE
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.846/ 21.60
Product Width (Inches/mm) 0.614/ 15.60
Product Height (Inches/mm) 0.457/ 11.60
Temperature -40℃ ~ 85℃
Compatible Brands Amphenol

Related jacks

Same family, different latch, LED or plating option.

Alternatif Kos Berkesan untuk Jenama Besar RJ45 Jack

Menghadapi masa utama yang panjang atau kos tinggi daripada jenama penyambung utama? Kami menyediakan pengganti berkualiti tinggi yang boleh terus dipasang untuk bicu modular standard daripada TE, Molex, Amphenol, dan Wurth. Penyambung kami sepadan dengan jejak piawaian industri dan spesifikasi prestasi pada titik harga yang lebih kompetitif.

Daripada penyaduran emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Kongsi lukisan untuk mendapatkan padanan setara
Masa utama yang singkat dan pembuatan yang konsisten di Taiwan
100% diuji untuk rintangan sentuhan dan integriti penebat
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Who manufactures the TWL20071CNL?
The TWL20071CNL is an original design manufactured by TeleWire Technology in Taiwan. Send the footprint or mechanical drawing you are designing against and the TeleWire Technology engineering team will confirm compatibility.
Can the TWL20071CNL be built to a different configuration?
Yes. The standard TWL20071CNL ships with a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWL20071CNL as a second source?
Request a sample of the TWL20071CNL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJ19960CNL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
