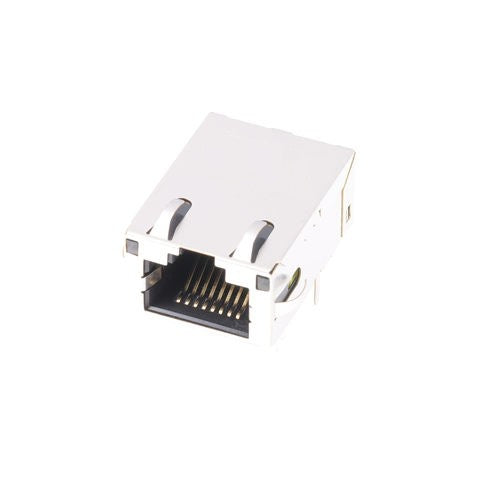

• TWL1K0113A94NL, 10G Base Low-Profile RJ45 Modular Jack with Transformer Tab Up with Green&Yellow/ Green Led - front view

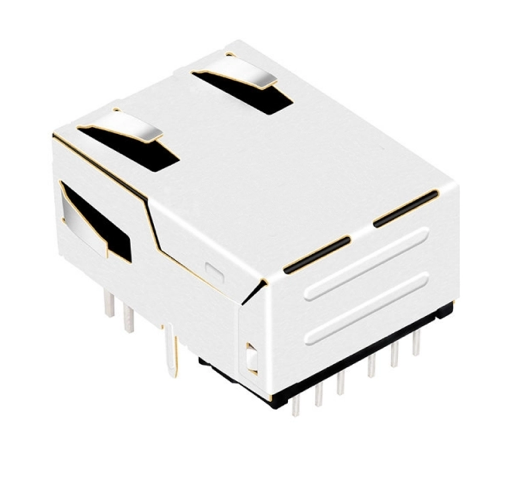

  • TWL1K0113A94NL, 10G Base Low-Profile RJ45 Modular Jack with Transformer Tab Up with Green&Yellow/ Green Led - side view

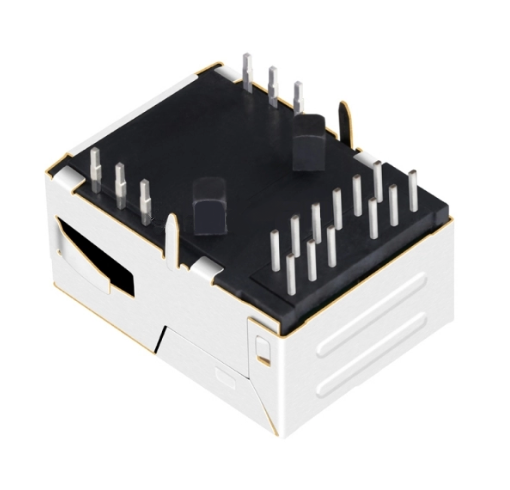

  • TWL1K0113A94NL, 10G Base Low-Profile RJ45 Modular Jack with Transformer Tab Up with Green&Yellow/ Green Led - back view
1 3

TWL1K0113A94NL, 10G Base Profil Rendah RJ45 dengan Tab Transformer Ke Atas dengan Lampu Hijau&Kuning/ Hijau

  • Serasi dengan
    Pulse: JT4-1108HL
  • Peranti berprestasi tinggi menyokong kelajuan 10G Base-T
  • Mematuhi pelbagai standard industri, memastikan penggunaan yang boleh dipercayai dan cekap
  • Harga berjulat dari $0.50 hingga $3.00 USD bergantung pada kuantiti pesanan dan spesifikasi dan diskaun pukal tersedia untuk pesanan volume besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 12P8C(RJ45)
Ports 1x1
Speed 10G Base-T
Latch Type Up
LED Green&Yellow/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.165/ 29.58
Product Width (Inches/mm) 0.700/ 17.78
Product Height (Inches/mm) 0.461/ 11.70
Temperature -40℃ ~ 85℃
Compatible Brands Pulse

Related jacks

Same family, different latch, LED or plating option.

Alternatif Kos Berkesan untuk Jenama Besar RJ45 Jack

Menghadapi masa utama yang panjang atau kos tinggi daripada jenama penyambung utama? Kami menyediakan pengganti berkualiti tinggi yang boleh terus dipasang untuk bicu modular standard daripada TE, Molex, Amphenol, dan Wurth. Penyambung kami sepadan dengan jejak piawaian industri dan spesifikasi prestasi pada titik harga yang lebih kompetitif.

Daripada penyaduran emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Kongsi lukisan untuk mendapatkan padanan setara
Masa utama yang singkat dan pembuatan yang konsisten di Taiwan
100% diuji untuk rintangan sentuhan dan integriti penebat
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Pulse JT4-1108HL?
The TWL1K0113A94NL from TeleWire Technology cross-references to the Pulse JT4-1108HL and to LINK-PP LPJK9002A83NL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TWL1K0113A94NL be built to a different configuration?
Yes. The standard TWL1K0113A94NL ships with Green&Yellow/ Green LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Pulse JT4-1108HL.
How do I qualify the TWL1K0113A94NL as a second source?
Request a sample of the TWL1K0113A94NL and the mechanical drawing from TeleWire Technology, then check the footprint against the Pulse JT4-1108HL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
