• RJ45 Modular Jack Connector without Transformer Tab Down - TWE792NNL - Main View
  • RJ45 Modular Jack Connector without Transformer Tab Down - TWE792NNL - Second View

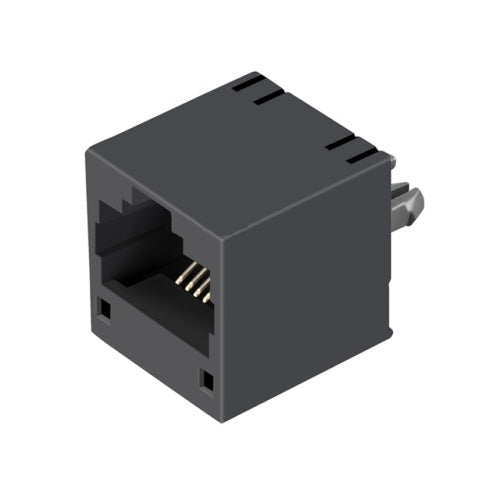

  • RJ45 Modular Jack Connector without Transformer Tab Down - TWE792NNL - Third View
1 3

TWE792NNL, Penyambung RJ45 tanpa Tab Penjana Kuasa Bawah tanpa Led

  • Mematuhi pelbagai standard industri, memastikan penggunaan yang boleh dipercayai dan cekap
  • Sempurna untuk Intercom, Komputer Industri, Router, dan Suis
  • Harga berbeza-beza dari $0.10 - $3.00 USD berdasarkan kuantiti dan spesifikasi. Hubungi kami untuk harga terperinci dan diskaun borong.

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x1
Latch Type Down
Shielding Unshielded
PCB Mount Type Through Hole
Orientation Vertical (180°)
AutoMDIX YES
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.638/ 16.20
Product Width (Inches/mm) 0.616/ 15.65
Product Height (Inches/mm) 0.632/ 16.05
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Alternatif Kos Berkesan untuk Jenama Besar RJ45 Jack

Menghadapi masa utama yang panjang atau kos tinggi daripada jenama penyambung utama? Kami menyediakan pengganti berkualiti tinggi yang boleh terus dipasang untuk bicu modular standard daripada TE, Molex, Amphenol, dan Wurth. Penyambung kami sepadan dengan jejak piawaian industri dan spesifikasi prestasi pada titik harga yang lebih kompetitif.

Daripada penyaduran emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Kongsi lukisan untuk mendapatkan padanan setara
Masa utama yang singkat dan pembuatan yang konsisten di Taiwan
100% diuji untuk rintangan sentuhan dan integriti penebat
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJE681NNL?
Yes. The TWE792NNL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJE681NNL. LINK-PP manufactures in mainland China; the TWE792NNL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TWE792NNL be built to a different configuration?
Yes. The standard TWE792NNL ships with a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TWE792NNL as a second source?
Request a sample of the TWE792NNL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJE681NNL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
