• 1x2 RJ45 Modular Jack Connector without Transformer Tab Down - TWE213DNL - Main View
  • 1x2 RJ45 Modular Jack Connector without Transformer Tab Down - TWE213DNL - Second View

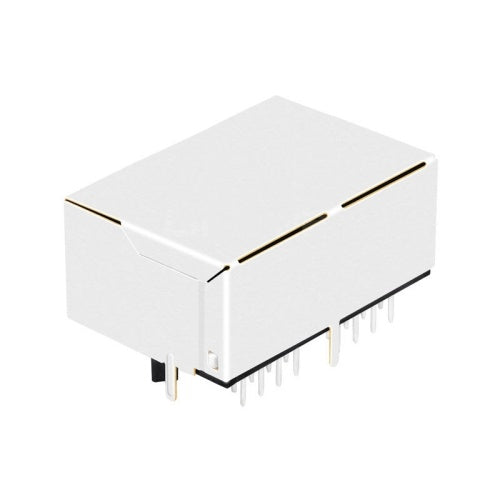

  • 1x2 RJ45 Modular Jack Connector without Transformer Tab Down - TWE213DNL - Third View
1 3

TWE213DNL, 1x2 Port RJ45 Tab Down tanpa Transformer tanpa Led

  • Serasi dengan
    Amphenol: 10118061-5005010LF
  • Mematuhi pelbagai standard industri, memastikan penggunaan yang boleh dipercayai dan cekap
  • Sempurna untuk SMPS, Papan Utama Terbenam, Suis, dan Penghala
  • Harga berjulat dari $0.10 hingga $3.00 USD bergantung pada kuantiti pesanan dan spesifikasi dan diskaun pukal tersedia untuk pesanan volume besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
View full details

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x2
Latch Type Down
Shielding Shield
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.837/ 21.27
Product Width (Inches/mm) 1.225/ 31.12
Product Height (Inches/mm) 0.537/ 13.65
Temperature -40℃ ~ 85℃
Compatible Brands Amphenol

Related jacks

Same family, different latch, LED or plating option.

Alternatif Kos Berkesan untuk Jenama Besar RJ45 Jack

Menghadapi masa utama yang panjang atau kos tinggi daripada jenama penyambung utama? Kami menyediakan pengganti berkualiti tinggi yang boleh terus dipasang untuk bicu modular standard daripada TE, Molex, Amphenol, dan Wurth. Penyambung kami sepadan dengan jejak piawaian industri dan spesifikasi prestasi pada titik harga yang lebih kompetitif.

Daripada penyaduran emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Kongsi lukisan untuk mendapatkan padanan setara
Masa utama yang singkat dan pembuatan yang konsisten di Taiwan
100% diuji untuk rintangan sentuhan dan integriti penebat
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Amphenol 10118061-5005010LF?
The TWE213DNL from TeleWire Technology cross-references to the Amphenol 10118061-5005010LF and to LINK-PP LPJE102DNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TWE213DNL be built to a different configuration?
Yes. The standard TWE213DNL ships with a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Amphenol 10118061-5005010LF.
How do I qualify the TWE213DNL as a second source?
Request a sample of the TWE213DNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Amphenol 10118061-5005010LF on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
