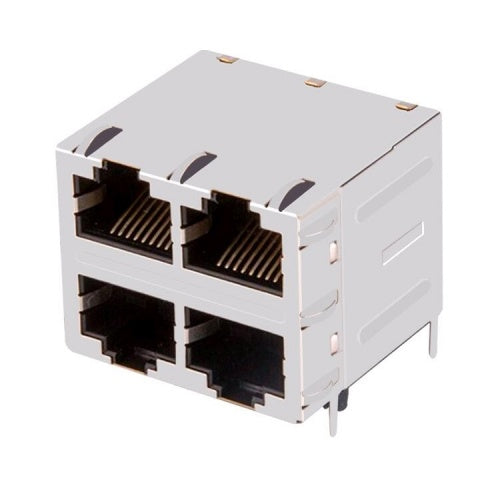

• TW22S38151CNL, 10/100 Base 2x2 Port RJ45 Modular Jack Tab Both without Led - side view

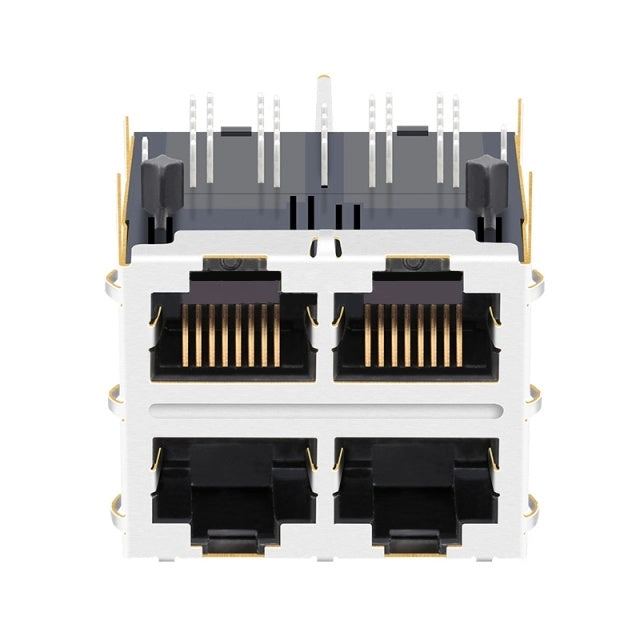

  • TW22S38151CNL, 10/100 Base 2x2 Port RJ45 Modular Jack Tab Both without Led - front view
  • 10G Base Gigabit 2x2 Port Magnetics RJ45 Modular Jack Tab Both with Green/ Green&Yellow Led -back view
1 3

TW22S38151CNL, Port Ethernet RJ45 2x2 10/100 Base dengan Tab Kedua Sisi tanpa Led

  • Perangkat berkinerja tinggi mendukung kecepatan 10/100 Base-T untuk konektivitas ethernet yang cepat
  • Konfigurasi port ethernet RJ45 2x2 menyediakan 4 koneksi jaringan total
  • Tab desain tanpa indikator LED untuk instalasi profesional yang bersih
  • Mematuhi beberapa standar industri, memastikan penggunaan yang andal dan efisien
  • Desain ramping yang dioptimalkan untuk aplikasi yang tidak memerlukan indikator status visual
  • Kisaran harga dari $0,50 hingga $3,00 USD tergantung pada jumlah pesanan dan spesifikasi, serta diskon volume tersedia untuk pesanan dalam jumlah besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Lihat detail lengkap

Product Specifications

RJ Type 8P8C(RJ45)
Ports 2x2
Speed 10/ 100 Base-T
Latch Type Both
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.118/ 28.40
Product Width (Inches/mm) 1.230/ 31.24
Product Height (Inches/mm) 1.015/ 25.79
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Alternatif Hemat Biaya untuk Merek Besar RJ45 Jack

Menghadapi waktu tunggu yang lama atau biaya tinggi dari merek konektor besar? Kami menyediakan pengganti berkualitas tinggi yang siap pakai untuk jack modular standar dari TE, Molex, Amphenol, dan Wurth. Konektor kami sesuai dengan jejak standar industri dan spesifikasi kinerja dengan harga yang lebih kompetitif.

Dari pelapisan emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Bagikan gambar untuk mendapatkan padanan yang setara
Waktu tunggu singkat dan manufaktur yang konsisten di Taiwan
100% diuji untuk resistansi kontak dan integritas isolasi
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Who manufactures the TW22S38151CNL?
The TW22S38151CNL is an original design manufactured by TeleWire Technology in Taiwan. Send the footprint or mechanical drawing you are designing against and the TeleWire Technology engineering team will confirm compatibility.
Can the TW22S38151CNL be built to a different configuration?
Yes. The standard TW22S38151CNL ships with latches in both directions. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TW22S38151CNL as a second source?
Request a sample of the TW22S38151CNL and the mechanical drawing from TeleWire Technology, then check the footprint against your current part on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
