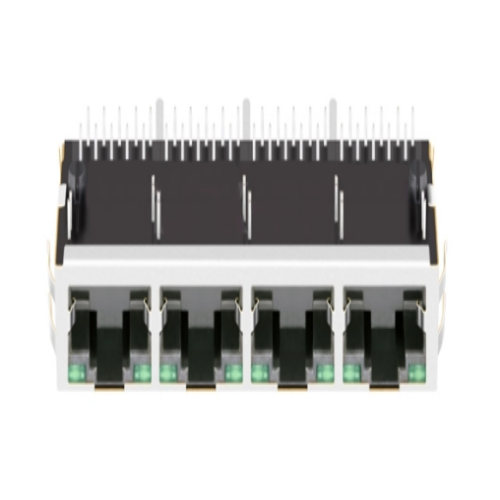

• TW4J59964AWNL, 1000 Base Gigabit 1x4 Port RJ45 Modular Jack Tab Up with Green/ Green Led - front view

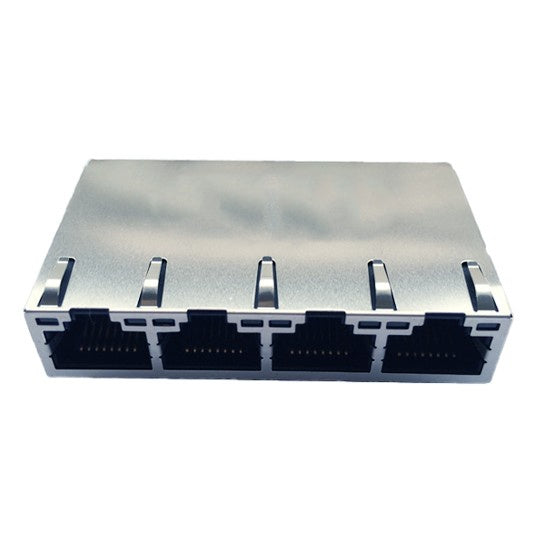

  • TW4J59964AWNL, 1000 Base Gigabit 1x4 Port RJ45 Modular Jack Tab Up with Green/ Green Led - side view

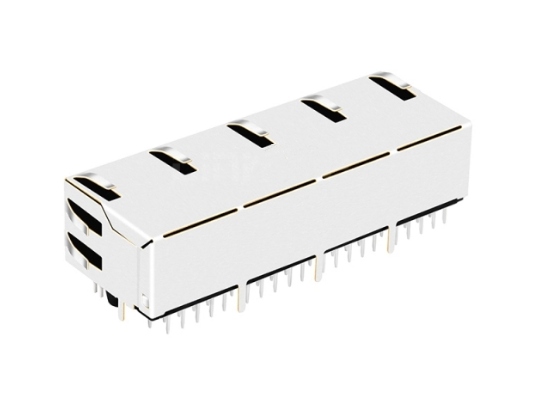

  • TW4J59964AWNL, 1000 Base Gigabit 1x4 Port RJ45 Modular Jack Tab Up with Green/ Green Led - back view
1 3

TW4J59964AWNL, 1000 Base Gigabit 1x4 Port RJ45 Tab Up dengan LED Hijau/Hijau

  • Kompatibel dengan
    Hanrun: HR971475C
  • Perangkat berkinerja tinggi mendukung kecepatan 10/100/1000 Base-T
  • Mematuhi beberapa standar industri, memastikan penggunaan yang andal dan efisien
  • Sempurna untuk Terminal Optik, Router, dan Motherboard Tertanam
  • Harga berkisar dari $0,50 hingga $3,00 USD tergantung pada jumlah pesanan dan spesifikasi, serta diskon besar untuk pesanan volume besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Lihat detail lengkap

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x4
Speed 10/100/1000 Base-T
Latch Type Up
LED Green/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.000/ 25.40
Product Width (Inches/mm) 2.330/ 59.20
Product Height (Inches/mm) 0.531/ 13.50
Temperature 0℃ ~ 70℃
Compatible Brands Hanrun

Related jacks

Same family, different latch, LED or plating option.

Alternatif Hemat Biaya untuk Merek Besar RJ45 Jack

Menghadapi waktu tunggu yang lama atau biaya tinggi dari merek konektor besar? Kami menyediakan pengganti berkualitas tinggi yang siap pakai untuk jack modular standar dari TE, Molex, Amphenol, dan Wurth. Konektor kami sesuai dengan jejak standar industri dan spesifikasi kinerja dengan harga yang lebih kompetitif.

Dari pelapisan emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Bagikan gambar untuk mendapatkan padanan yang setara
Waktu tunggu singkat dan manufaktur yang konsisten di Taiwan
100% diuji untuk resistansi kontak dan integritas isolasi
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Hanrun HR971475C?
The TW4J59964AWNL from TeleWire Technology cross-references to the Hanrun HR971475C and to LINK-PP LPJG48853AWNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW4J59964AWNL be built to a different configuration?
Yes. The standard TW4J59964AWNL ships with Green/ Green LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Hanrun HR971475C.
How do I qualify the TW4J59964AWNL as a second source?
Request a sample of the TW4J59964AWNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Hanrun HR971475C on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
