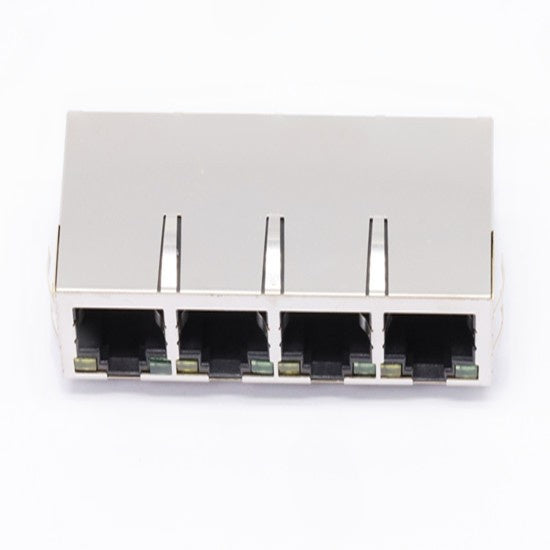

• TW4J57515ADNL, 10/100 Base Modular Jack 1x4 Port RJ45 Tab Down with Yellow/ Green Led - front view

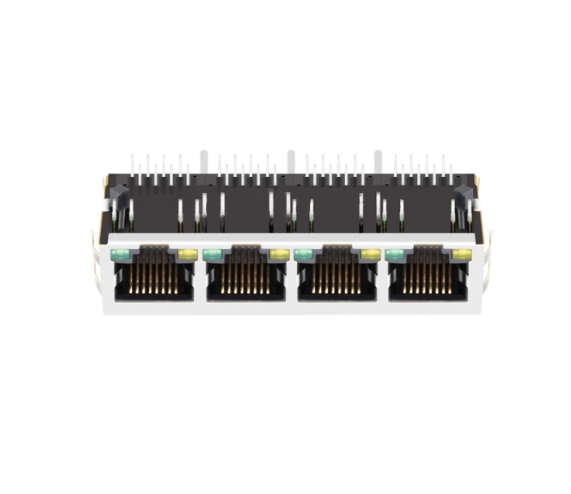

  • TW4J57515ADNL, 10/100 Base Modular Jack 1x4 Port RJ45 Tab Down with Yellow/ Green Led - side view

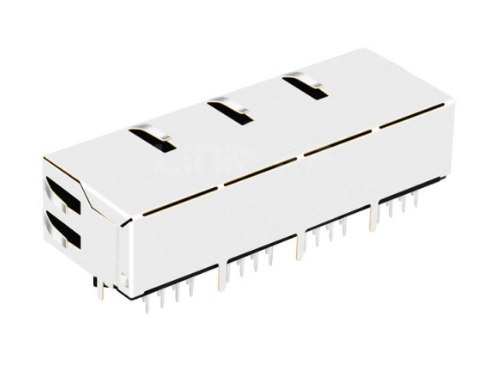

  • TW4J57515ADNL, 10/100 Base Modular Jack 1x4 Port RJ45 Tab Down with Yellow/ Green Led - back view
1 3

TW4J57515ADNL, Ethernet 10/100 Base 1x4 Port RJ45 Tab Bawah dengan LED Kuning/Hijau

  • Perangkat berkinerja tinggi mendukung kecepatan 10/100 Base-T
  • Mematuhi beberapa standar industri, memastikan penggunaan yang andal dan efisien
  • Sempurna untuk Server, Network Firewall, Ethernet Control, dan Monitoring System
  • Harga berkisar dari $0,50 hingga $3,00 USD tergantung pada jumlah pesanan dan spesifikasi, serta diskon besar untuk pesanan volume besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Lihat detail lengkap

Product Specifications

RJ Type 8P8C(RJ45)
Ports 1x4
Speed 10/ 100 Base-T
Latch Type Down
LED Yellow/ Green
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.839/ 21.30
Product Width (Inches/mm) 2.328/ 59.12
Product Height (Inches/mm) 0.533/ 13.55
Temperature -40℃ ~ 85℃

Related jacks

Same family, different latch, LED or plating option.

Alternatif Hemat Biaya untuk Merek Besar RJ45 Jack

Menghadapi waktu tunggu yang lama atau biaya tinggi dari merek konektor besar? Kami menyediakan pengganti berkualitas tinggi yang siap pakai untuk jack modular standar dari TE, Molex, Amphenol, dan Wurth. Konektor kami sesuai dengan jejak standar industri dan spesifikasi kinerja dengan harga yang lebih kompetitif.

Dari pelapisan emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Bagikan gambar untuk mendapatkan padanan yang setara
Waktu tunggu singkat dan manufaktur yang konsisten di Taiwan
100% diuji untuk resistansi kontak dan integritas isolasi
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJ46404ADNL?
Yes. The TW4J57515ADNL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJ46404ADNL. LINK-PP manufactures in mainland China; the TW4J57515ADNL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TW4J57515ADNL be built to a different configuration?
Yes. The standard TW4J57515ADNL ships with Yellow/ Green LEDs and a tab-down latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TW4J57515ADNL as a second source?
Request a sample of the TW4J57515ADNL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJ46404ADNL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
