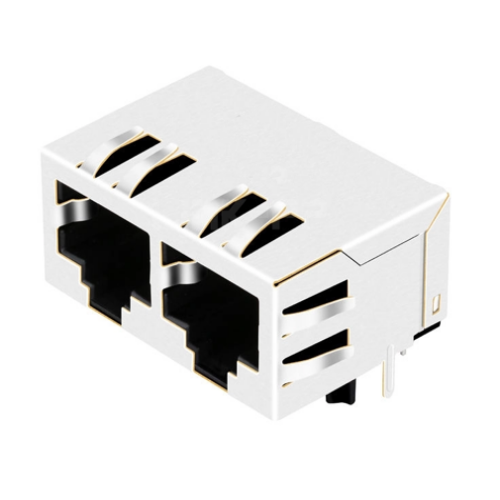

• TW2J379299CNL, 1000 Base Gigabit 1x2 Port RJ45 Jack Tab Down without Led - side view

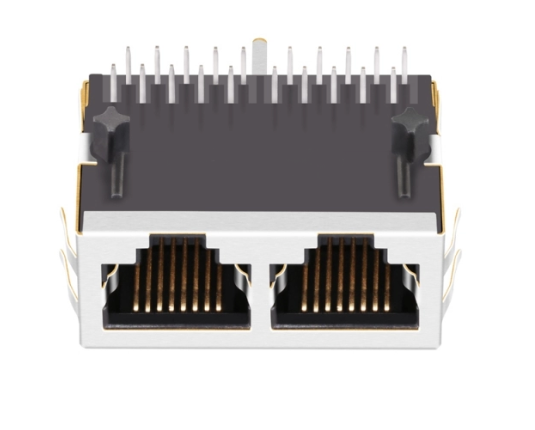

  • TW2J379299CNL, 1000 Base Gigabit 1x2 Port RJ45 Jack Tab Down without Led - front view

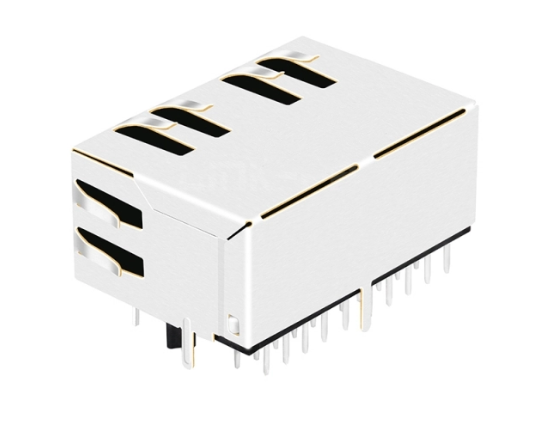

  • TW2J379299CNL, 1000 Base Gigabit 1x2 Port RJ45 Jack Tab Down without Led - back view
1 3

TW2J379299CNL, 1000 Base Gigabit 1x2 Port RJ45 Tab Down tanpa Led

  • Kompatibel dengan
    Halo: HF12-1G46ERL
  • Perangkat berkinerja tinggi mendukung kecepatan 10/100/1000 Base-T
  • Mematuhi beberapa standar industri, memastikan penggunaan yang andal dan efisien
  • Harga berkisar dari $0,50 hingga $3,00 USD tergantung pada jumlah pesanan dan spesifikasi, serta diskon massal tersedia untuk pesanan volume besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Lihat detail lengkap

Product Specifications

RJ Type 10P8C(RJ45)
Ports 1x2
Speed 10/100/1000 Base-T
Latch Type Down
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 0.839/ 21.30
Product Width (Inches/mm) 1.213/ 30.80
Product Height (Inches/mm) 0.527/ 13.39
Temperature 0℃ ~ 70℃
Compatible Brands Halo

Related jacks

Same family, different latch, LED or plating option.

Alternatif Hemat Biaya untuk Merek Besar RJ45 Jack

Menghadapi waktu tunggu yang lama atau biaya tinggi dari merek konektor besar? Kami menyediakan pengganti berkualitas tinggi yang siap pakai untuk jack modular standar dari TE, Molex, Amphenol, dan Wurth. Konektor kami sesuai dengan jejak standar industri dan spesifikasi kinerja dengan harga yang lebih kompetitif.

Dari pelapisan emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Bagikan gambar untuk mendapatkan padanan yang setara
Waktu tunggu singkat dan manufaktur yang konsisten di Taiwan
100% diuji untuk resistansi kontak dan integritas isolasi
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Halo HF12-1G46ERL?
The TW2J379299CNL from TeleWire Technology cross-references to the Halo HF12-1G46ERL and to LINK-PP LPJG26818-8CNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Which manufacturers' parts does the TW2J379299CNL replace?
The TW2J379299CNL cross-references to Halo HF12-1G46ERL; Halo HFJ12-1G46ERL, and to LINK-PP LPJG26818-8CNL. TeleWire Technology publishes the full cross-reference so a sourcing engineer can qualify one Taiwan-built part against several incumbents at once.
How do I qualify the TW2J379299CNL as a second source?
Request a sample of the TW2J379299CNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Halo HF12-1G46ERL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
