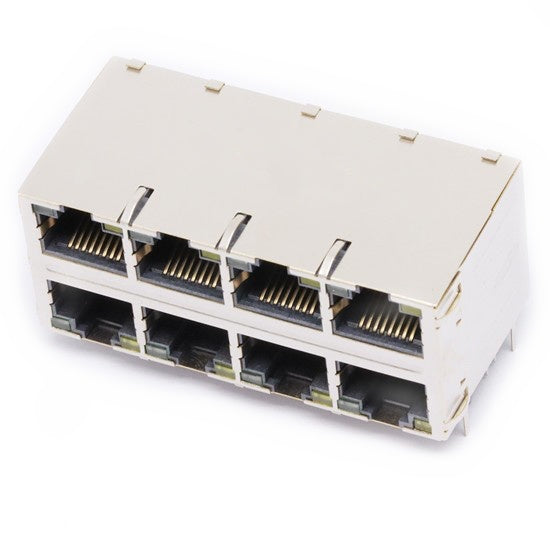

• TW24S58691A46NL, 1000 Base Gigabit 2x4 Port Ethernet RJ45 Tab Both with Yellow&Green/ Yellow Led - side view

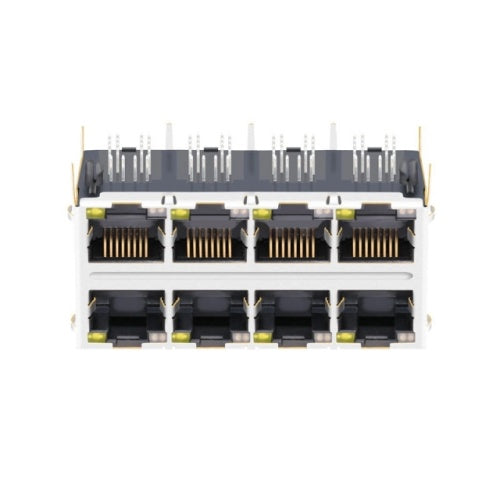

  • TW24S58691A46NL, 1000 Base Gigabit 2x4 Port Ethernet RJ45 Tab Both with Yellow&Green/ Yellow Led - front view
  • TW24S58653A58NL, 1000 Base 2x4 Port Modular Jack RJ45 Tab Both with Yellow&Green/ Yellow&Green Led - back view
1 3

TW24S58691A46NL, 1000Base Gigabit 2x4 Port Ethernet RJ45 Tab Keduanya dengan LED Kuning Hijau/Kuning

  • Perangkat berkinerja tinggi mendukung kecepatan 10/100/1000 Base-T untuk konektivitas gigabit yang beragam
  • Konfigurasi ethernet RJ45 2x4 port menyediakan 8 koneksi jaringan gigabit total
  • Desain tab dengan indikator LED kuning&hijau/kuning untuk pemantauan status yang rinci
  • Mematuhi beberapa standar industri, memastikan penggunaan yang andal dan efisien
  • Sistem LED dua warna memberikan indikasi link dan aktivitas yang komprehensif di semua port
  • Rentang harga dari $0,50 hingga $3,00 USD tergantung pada jumlah pesanan dan spesifikasi, serta diskon volume tersedia untuk pesanan dalam jumlah besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Lihat detail lengkap

Product Specifications

RJ Type 8P8C(RJ45)
Ports 2x4
Speed 10/100/1000 Base-T
Latch Type Both
LED Yellow&Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.116/ 28.35
Product Width (Inches/mm) 2.330/ 59.18
Product Height (Inches/mm) 1.015/ 25.79
Temperature 0℃ ~ 70℃

Related jacks

Same family, different latch, LED or plating option.

Alternatif Hemat Biaya untuk Merek Besar RJ45 Jack

Menghadapi waktu tunggu yang lama atau biaya tinggi dari merek konektor besar? Kami menyediakan pengganti berkualitas tinggi yang siap pakai untuk jack modular standar dari TE, Molex, Amphenol, dan Wurth. Konektor kami sesuai dengan jejak standar industri dan spesifikasi kinerja dengan harga yang lebih kompetitif.

Dari pelapisan emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Bagikan gambar untuk mendapatkan padanan yang setara
Waktu tunggu singkat dan manufaktur yang konsisten di Taiwan
100% diuji untuk resistansi kontak dan integritas isolasi
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJG47580A35NL?
Yes. The TW24S58691A46NL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJG47580A35NL. LINK-PP manufactures in mainland China; the TW24S58691A46NL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TW24S58691A46NL be built to a different configuration?
Yes. The standard TW24S58691A46NL ships with Yellow&Green/ Yellow LEDs and latches in both directions. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TW24S58691A46NL as a second source?
Request a sample of the TW24S58691A46NL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJG47580A35NL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
