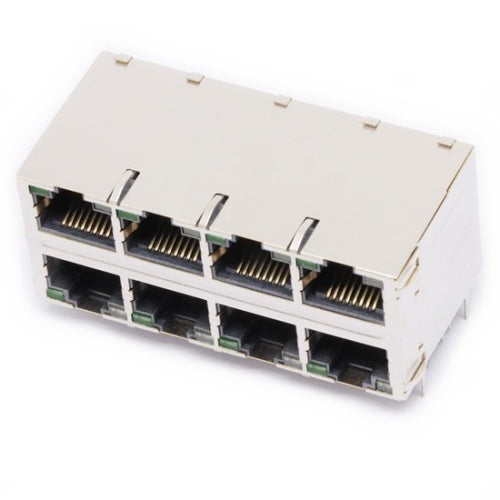

• TW24S58624A9NL, 10G Base Gigabit 2x4 Port Integrated Magnetics Jack RJ45 Tab Both with Green/ Yellow Led - side view

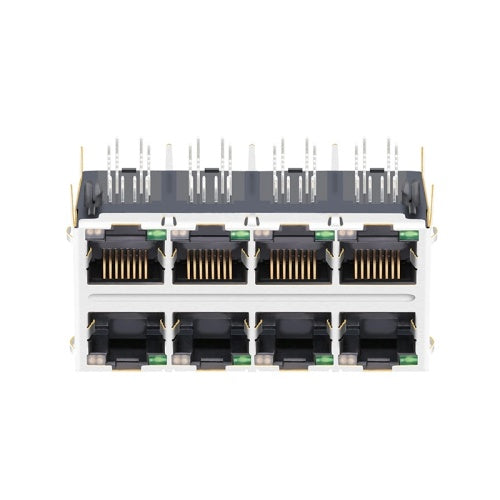

  • TW24S58624A9NL, 10G Base Gigabit 2x4 Port Integrated Magnetics Jack RJ45 Tab Both with Green/ Yellow Led - front view

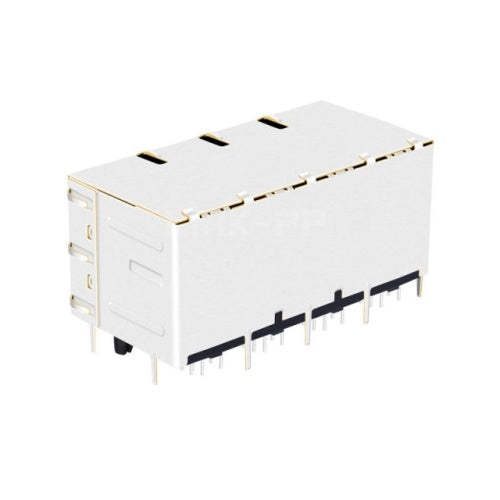

  • TW24S58624A9NL, 10G Base Gigabit 2x4 Port Magnetics RJ45 Jack Tab Both with Green/ Yellow Led - back view
1 3

TW24S58624A9NL, 10G Base Gigabit 2x4 Port Terintegrasi Magnetik RJ45 Tab Keduanya dengan LED Hijau/Kuning

  • Perangkat berkinerja tinggi mendukung kecepatan 10G Base-T untuk konektivitas jaringan super cepat
  • Konfigurasi port 2x4 dengan magnet terintegrasi yang menyediakan 8 koneksi ethernet 10-gigabit total
  • Desain tab dengan indikator LED hijau/kuning untuk pemantauan status port waktu nyata
  • Mematuhi beberapa standar industri, memastikan penggunaan yang andal dan efisien
  • Teknologi magnet terintegrasi canggih yang dioptimalkan untuk integritas dan kinerja sinyal 10G
  • Harga berkisar dari $0,50 hingga $3,00 USD tergantung pada jumlah pesanan dan spesifikasi, serta diskon besar volume tersedia untuk pesanan dalam jumlah besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Lihat detail lengkap

Product Specifications

RJ Type 10P8C(RJ45)
Ports 2x4
Speed 10G Base-T
Latch Type Both
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.116/ 28.35
Product Width (Inches/mm) 2.330/ 59.18
Product Height (Inches/mm) 1.015/ 25.79
Temperature 0℃ ~ 70℃

Related jacks

Same family, different latch, LED or plating option.

Alternatif Hemat Biaya untuk Merek Besar RJ45 Jack

Menghadapi waktu tunggu yang lama atau biaya tinggi dari merek konektor besar? Kami menyediakan pengganti berkualitas tinggi yang siap pakai untuk jack modular standar dari TE, Molex, Amphenol, dan Wurth. Konektor kami sesuai dengan jejak standar industri dan spesifikasi kinerja dengan harga yang lebih kompetitif.

Dari pelapisan emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Bagikan gambar untuk mendapatkan padanan yang setara
Waktu tunggu singkat dan manufaktur yang konsisten di Taiwan
100% diuji untuk resistansi kontak dan integritas isolasi
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJM47513A8NL?
Yes. The TW24S58624A9NL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJM47513A8NL. LINK-PP manufactures in mainland China; the TW24S58624A9NL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TW24S58624A9NL be built to a different configuration?
Yes. The standard TW24S58624A9NL ships with Green/ Yellow LEDs and latches in both directions. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TW24S58624A9NL as a second source?
Request a sample of the TW24S58624A9NL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJM47513A8NL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
