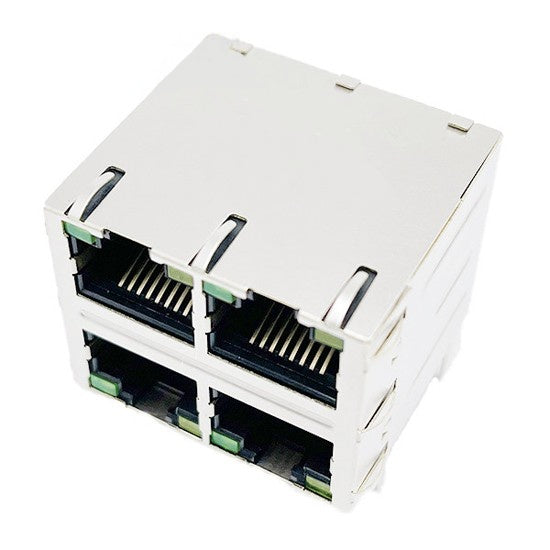

• TW22S38121AHNL, 2.5G Base Gigabit 2x2 Port RJ45 Modular Jack Tab Both with Green/ Yellow Led - side view

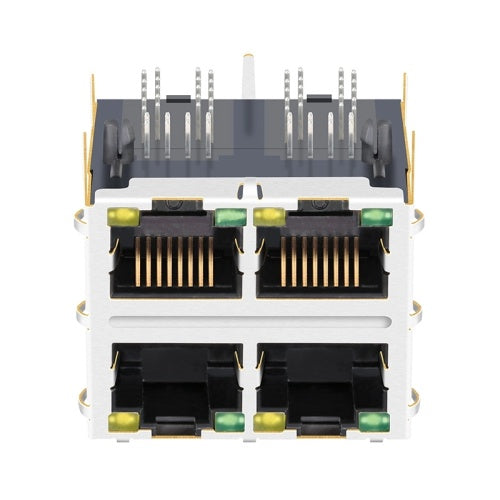

  • TW22S38121AHNL, 2.5G Base Gigabit 2x2 Port RJ45 Modular Jack Tab Both with Green/ Yellow Led - front view
  • 10G Base Gigabit 2x2 Port Magnetics RJ45 Modular Jack Tab Both with Green/ Green&Yellow Led -back view
1 3

TW22S38121AHNL, Magnetics RJ45 2x2 Port Gigabit 2,5G dengan Tab Kedua Sisi dan LED Hijau/Kuning

  • Perangkat berkinerja tinggi mendukung kecepatan 2.5G Base-T untuk konektivitas jaringan yang ditingkatkan
  • Konfigurasi port 2x2 dengan magnet terintegrasi yang menyediakan 4 koneksi 2,5 gigabit total
  • Tab desain keduanya menampilkan indikator LED hijau/kuning untuk pemantauan status waktu nyata
  • Mematuhi beberapa standar industri, memastikan penggunaan yang andal dan efisien
  • Teknologi magnet terintegrasi yang dioptimalkan untuk kualitas dan kinerja sinyal 2,5G
  • Rentang harga dari $0,50 hingga $3,00 USD tergantung pada jumlah pesanan dan spesifikasi, serta diskon massal tersedia untuk pesanan volume besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Lihat detail lengkap

Product Specifications

RJ Type 8P8C(RJ45)
Ports 2x2
Speed 2.5G Base-T
Latch Type Both
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.122/ 28.50
Product Width (Inches/mm) 1.228/ 31.18
Product Height (Inches/mm) 1.015/ 25.79
Temperature 0℃ ~ 70℃

Related jacks

Same family, different latch, LED or plating option.

Alternatif Hemat Biaya untuk Merek Besar RJ45 Jack

Menghadapi waktu tunggu yang lama atau biaya tinggi dari merek konektor besar? Kami menyediakan pengganti berkualitas tinggi yang siap pakai untuk jack modular standar dari TE, Molex, Amphenol, dan Wurth. Konektor kami sesuai dengan jejak standar industri dan spesifikasi kinerja dengan harga yang lebih kompetitif.

Dari pelapisan emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Bagikan gambar untuk mendapatkan padanan yang setara
Waktu tunggu singkat dan manufaktur yang konsisten di Taiwan
100% diuji untuk resistansi kontak dan integritas isolasi
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

Is there a Taiwan-made equivalent to LINK-PP LPJM27010AHNL?
Yes. The TW22S38121AHNL from TeleWire Technology is a Taiwan-manufactured equivalent to LINK-PP LPJM27010AHNL. LINK-PP manufactures in mainland China; the TW22S38121AHNL is built in Taiwan, which is the reason most buyers cross over to it.
Can the TW22S38121AHNL be built to a different configuration?
Yes. The standard TW22S38121AHNL ships with Green/ Yellow LEDs and latches in both directions. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing. Send the drawing you are designing against and the engineering team will confirm what is achievable.
How do I qualify the TW22S38121AHNL as a second source?
Request a sample of the TW22S38121AHNL and the mechanical drawing from TeleWire Technology, then check the footprint against LINK-PP LPJM27010AHNL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
