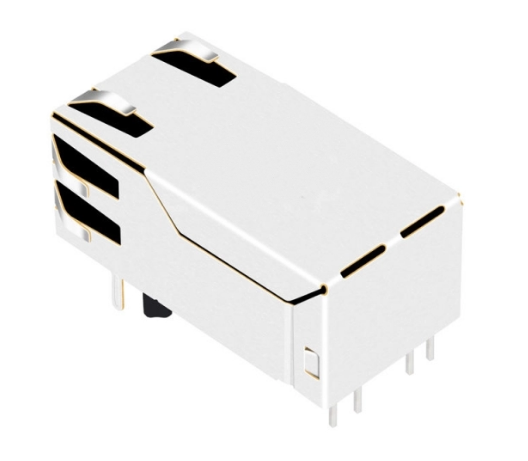

• TW1KM06393AHNL, 10G Base RJ45 Modular Jack with Transformer with PoE+ Tab Up with Green/ Yellow Led - side view

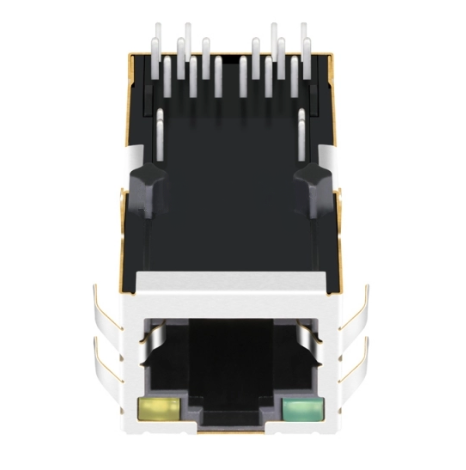

  • TW1K07393AHNL, 10G Base RJ45 Jack with Transformer with PoE+ Tab Up with Green/ Yellow Led - front view
  • TW1K07393AHNL, 10G Base RJ45 Jack with Transformer with PoE+ Tab Up with Green/ Yellow Led - back view
1 3

TW1K07393AHNL, 10G Base RJ45 dengan Transformer dengan Tab PoE+ Menghadap Atas dengan LED Hijau/Kuning

  • Kompatibel dengan
    Halo: HFJT1-10GHPE-L12RL
  • Perangkat berkinerja tinggi mendukung kecepatan 10G Base-T
  • Mematuhi beberapa standar industri, memastikan penggunaan yang andal dan efisien
  • Harga berkisar dari $0,50 hingga $3,00 USD tergantung pada jumlah pesanan dan spesifikasi, serta diskon massal tersedia untuk pesanan volume besar

Product Packaging Information

Package Tray (Reel packaging options available)
Carton size 32*30*31cm
Qty/carton 1200pcs
G.W/carton 8.5kg
Lihat detail lengkap

Product Specifications

RJ Type 16P8C(RJ45)
Ports 1x1
Speed 10G Base-T
Latch Type Up
LED Green/ Yellow
Shielding Shield with EMI Finger
PCB Mount Type Through Hole
Orientation Right Angle (90°)
PoE PoE+
AutoMDIX Yes
PCB Material FR4
Contact Material Gold
Contact Plating Gold Flash/ 6u"/ 15u"/ 30u"/ 50u"
Certification RoHS Compliant
Product Length (Inches/mm) 1.280/ 32.50
Product Width (Inches/mm) 0.650/ 16.50
Product Height (Inches/mm) 0.531/ 13.50
Temperature -40℃ ~ 85℃
Compatible Brands Halo

Related jacks

Same family, different latch, LED or plating option.

Alternatif Hemat Biaya untuk Merek Besar RJ45 Jack

Menghadapi waktu tunggu yang lama atau biaya tinggi dari merek konektor besar? Kami menyediakan pengganti berkualitas tinggi yang siap pakai untuk jack modular standar dari TE, Molex, Amphenol, dan Wurth. Konektor kami sesuai dengan jejak standar industri dan spesifikasi kinerja dengan harga yang lebih kompetitif.

Dari pelapisan emas Flash, 3µ", 6µ", 15µ", 30µ", hingga 50µ"
Bagikan gambar untuk mendapatkan padanan yang setara
Waktu tunggu singkat dan manufaktur yang konsisten di Taiwan
100% diuji untuk resistansi kontak dan integritas isolasi
Request Custom Quote

We reply within 24 hours. No account needed. Your specifications stay confidential; NDA available on request.

What is a Taiwan-made alternative to the Halo HFJT1-10GHPE-L12RL?
The TW1K07393AHNL from TeleWire Technology cross-references to the Halo HFJT1-10GHPE-L12RL and to LINK-PP LPJM96282AHNL. It is manufactured in Taiwan, giving buyers a supply route outside mainland China for the same footprint. Send the footprint you are designing against and TeleWire Technology will confirm compatibility.
Can the TW1K07393AHNL be built to a different configuration?
Yes. The standard TW1K07393AHNL ships with Green/ Yellow LEDs and a tab-up latch. TeleWire Technology can change LED colour, latch direction, contact plating thickness (Gold Flash through 50 microinch) and tray or reel packaging against your drawing, while holding the footprint that matches Halo HFJT1-10GHPE-L12RL.
How do I qualify the TW1K07393AHNL as a second source?
Request a sample of the TW1K07393AHNL and the mechanical drawing from TeleWire Technology, then check the footprint against the Halo HFJT1-10GHPE-L12RL on your board. TeleWire Technology builds in Taiwan under an ISO 9001 quality system, and its engineering team will review your drawing before you commit.
